ITM G80 Lifting Point-Oblong Eye Bolt-M36-12.8 T
Product Code: TM9812-04036
$860.35 (Incl. GST)
TM9812-04036 | ITM G80 Lifting Point-Oblong Eye Bolt-M36-12.8 T
Features
• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776
Specifications
• W.L.L. 0°: 12.8T
• W.L.L. 90°: 8T
• Thread: M36

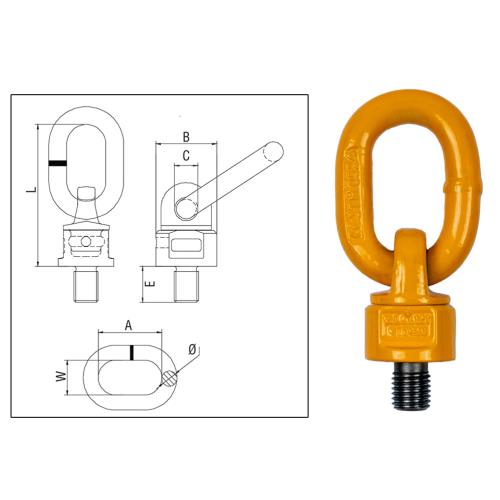

• Dimension A: 115mm
• Dimension B: 80mm
• Dimension C: 28mm
• Dimension E: 50mm
• Dimension L: 203mm
• Dimension W: 50mm
• Dimension Ø: 22.5mm
