ITM G80 Eye Swivel Self Locking Hook - 20mm Chain
Product Code: TM9804-03220
$1,768.64 (Incl. GST)
Download PDF
w/ Ball Bearing
TM9804-03220| ITM G80 Components, Eye Swivel Self Locking Hook w/ Ball Bearing, 20mm Chain Size
Features
• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776
Specifications
• Chain Size: 20mm
• W.L.L. (t): 12.5

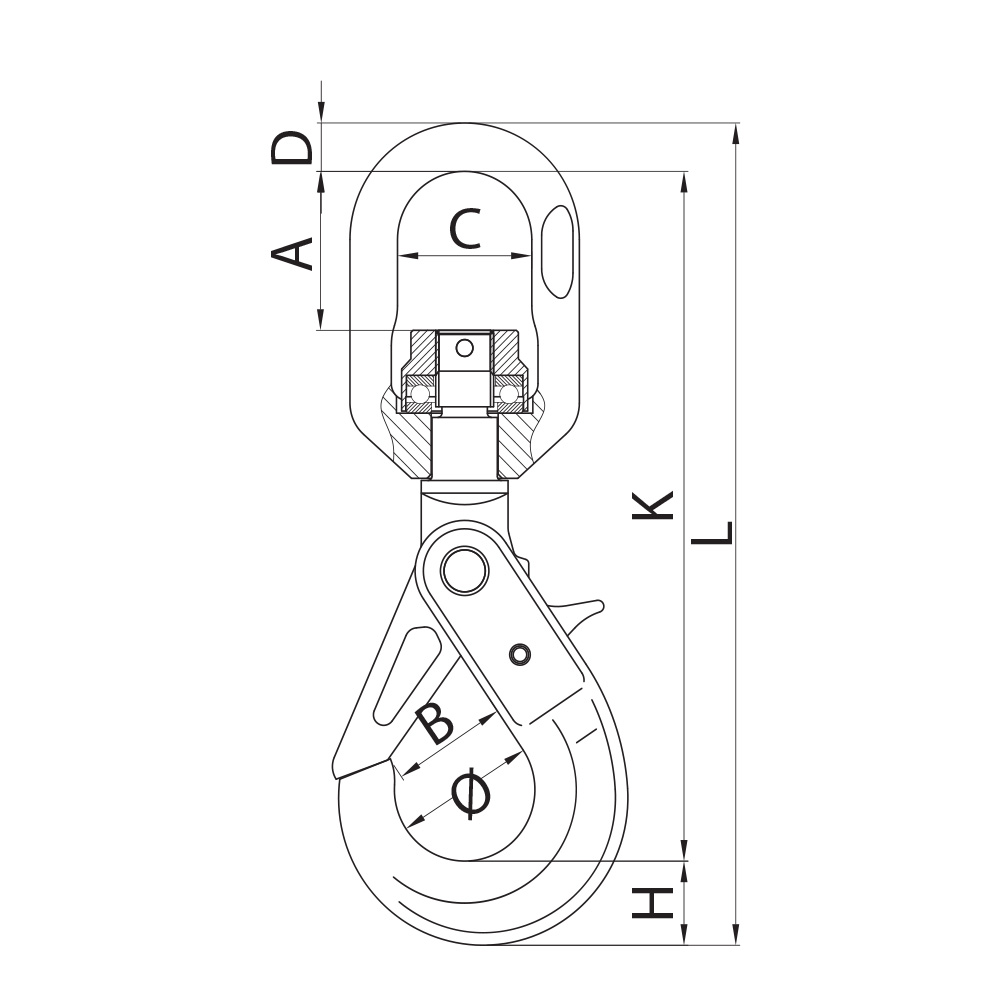

Body Dimensions (mm):
• A: 75.5
• B: 76
• C: 76
• D: 26
• K: 405
• H: 62
• L: 464
• Ø: 97
