ITM Concrete Lifting Clutch Panel Lifter 10T

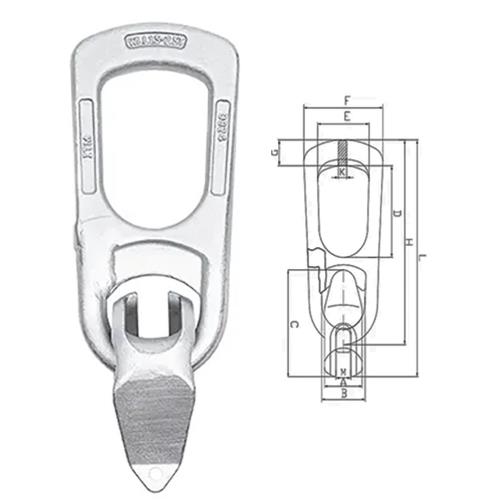

TM9814-00100 | ITM Concrete Lifting Clutch Panel Lifter 10T Features • Specifically designed for lifting precast concrete elements with an embedded pin • Easily engages under load, ensuring proper connection • Simple clutch release when lifting completed • Available in working load limits ranging from 1.3t to 20t • Tested and certified to AS 3850.1 Specifications • W.L.L. (t): 10 • B.L. (t): 40 • Dimension A (mm): 73 • Dimension B (mm): 92 • Dimension C (mm): 176 • Dimension D (mm): 116 • Dimension E (mm): 83 • Dimension F (mm): 161 • Dimension H (mm): 342 • Dimension M (mm): 30 • Dimension L (mm): 391 • Dimension G (mm): 51 • Dimension K (mm): 27 • Weight (kg): 9.13
