ITM Concrete Lifting Clutch Panel Lifter 1.3T

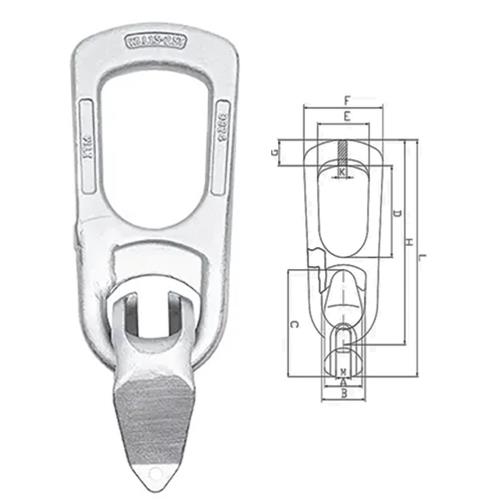

TM9814-00013 | ITM Concrete Lifting Clutch Panel Lifter 1.3T Features • Specifically designed for lifting precast concrete elements with an embedded pin • Easily engages under load, ensuring proper connection • Simple clutch release when lifting completed • Available in working load limits ranging from 1.3t to 20t • Tested and certified to AS 3850.1 Specifications • W.L.L. (t): 1.3 • B.L. (t): 5.2 • Dimension A (mm): 33 • Dimension B (mm): 42 • Dimension C (mm): 80.4 • Dimension D (mm): 70.5 • Dimension E (mm): 45 • Dimension F (mm): 73 • Dimension H (mm): 160 • Dimension M (mm): 11 • Dimension L (mm): 186 • Dimension G (mm): 20.5 • Dimension K (mm): 12.5 • Weight (kg): 0.89
