16 Speed | 360mm Swing | 240V

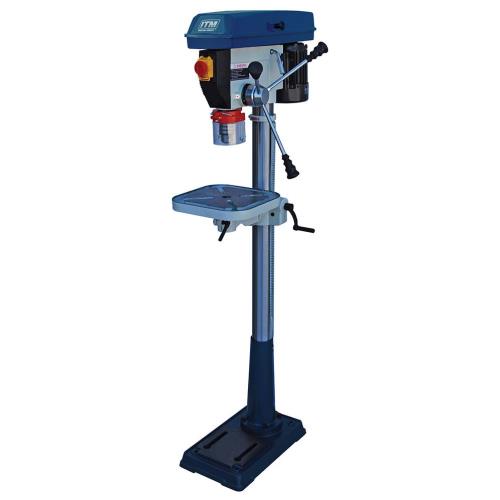

TD1416F | Trademaster Pedestal Floor Drill Press 2MT 16mm Cap. 550W
FEATURES
• Quality casting, construction & componentry.
• Emergency stop.
• NVR safety switch.
Each Unit Supplied With:
• Chuck safety guard.
• Drill chuck & arbor.
• Drill drift (on MT models)
SPECIFICATIONS
• Drilling Capacity (mm): 16mm (5/8")
• Spindle Taper: #2MT
• Chuck: 3-16mm B16
• Motor Power: 550W 240V
• Spindle Travel (mm): 85
• Speed: 16 Speed 180-2770
• Swing (mm): 360
• Table Size / Base Size (mm): 290 x 290 / 460x272
• T-Slot Size: 16mm
• Column Diameter (mm): 72
• Height (mm): 1600
• N.W. / G.W. (kg): 58 / 62
• Drill press vice to suit: VDP102 or VDP150
• Cross slide vice to suit: TM130-100
