W3 All Stainless 430
KA1120038008 | Kale 160pc Wall Merchandiser w/Stock WD 9/12mm W3

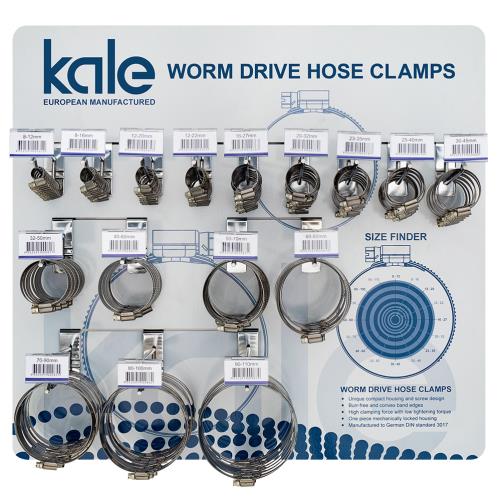

KALE WORM DRIVE HOSE CLAMP WALL MERCHANDISER
A convenient solution for the storage and selection of the right KALE worm drive clamp for a wide range of applications and environments.
MERCHANDISER FEATURES
· Stocked with 16 sizes from 8-12mm to 90-110mm (160 pieces)
· Heavy duty backing board manufactured in sturdy galvanised steel
· Supplied with twin hooks with size / barcode ticket holders
· Unique size finder allows easy selection of correct size clamp
· Barcode tickets and extra scan sheet supplied
CLAMP FEATURES
· Manufactured in Europe according to DIN 3017
· Strong durable mechanically locked housing
· Compact space saving housing design
· Burr free Convex band edges
· High clamping force with low tightening torque
CLAMP MATERIALS
· W3 all stainless 430
Contents
BANDWIDTH DIAMETER QTY
9mm 8-12mm 10
9mm 8-16mm 10
9mm 12-20mm 10
9mm 12-22mm 10
12mm 16-27mm 10
12mm 20-32mm 10
12mm 23-35mm 10
12mm 25-40mm 10
12mm 30-45mm 10
12mm 32-50mm 10
12mm 40-60mm 10
12mm 50-70mm 10
12mm 60-80mm 10
12mm 70-90mm 10
12mm 80-100mm 10
12mm 90-110mm 10
