TM9812-02016| ITM G80 Lifting Point, Mega Eye Bolt, M16, 1.5 T
• Premium-grade heat treated alloy steel
• Specifications, batch and brand markings as per Australian Standards requirements
• Tested and certified to AS 3776
Specifications
• W.L.L.: 1.5T
• Thread: M16

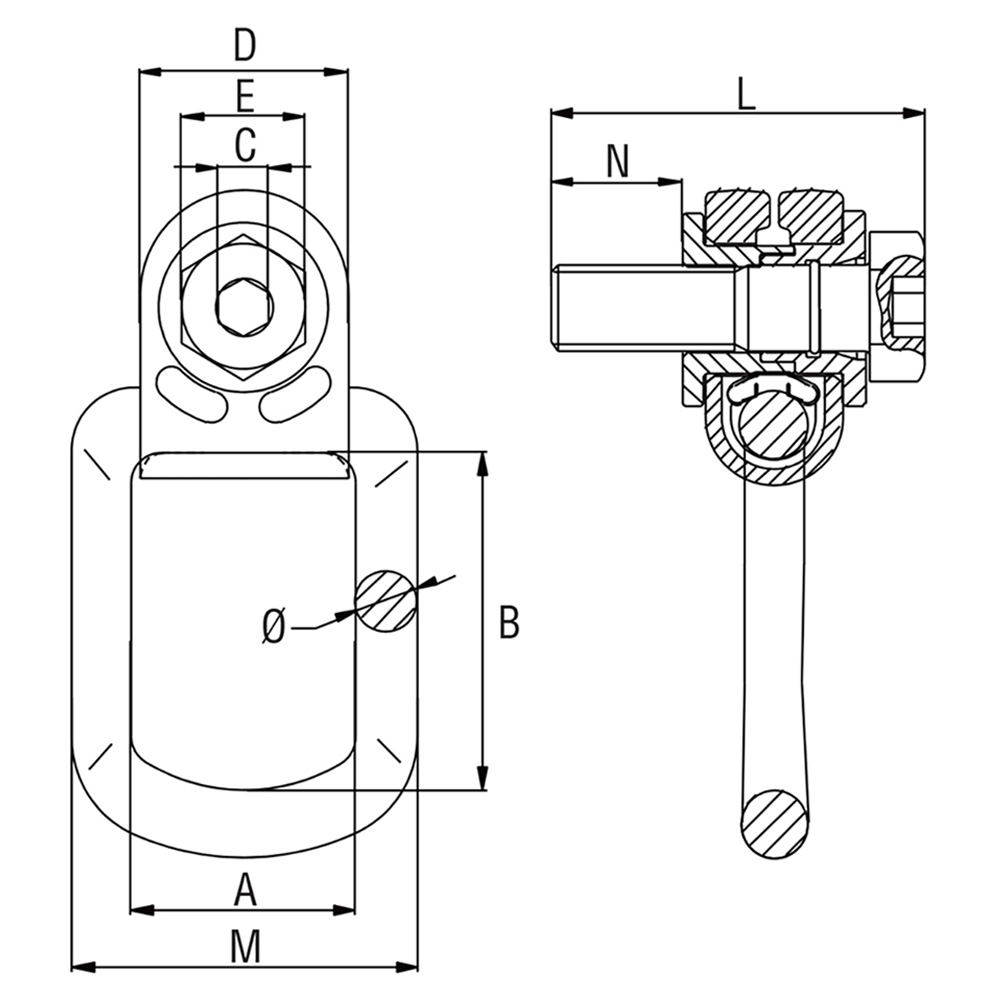

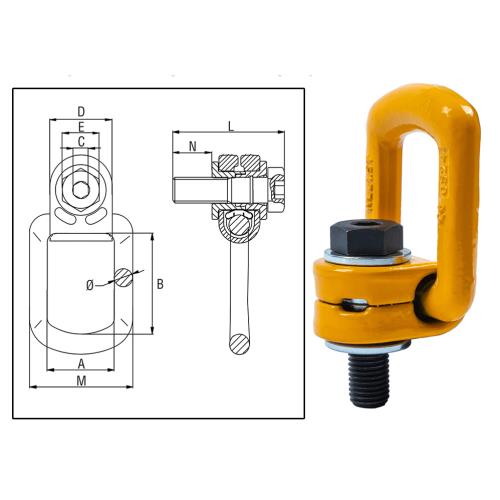

• Dimensions:
A: 40mm
B: 54mm
C: 10mm
D: 36mm
E: 22mm
M: 68mm
L: 185mm
N: 140mm
Ø: 18mm
