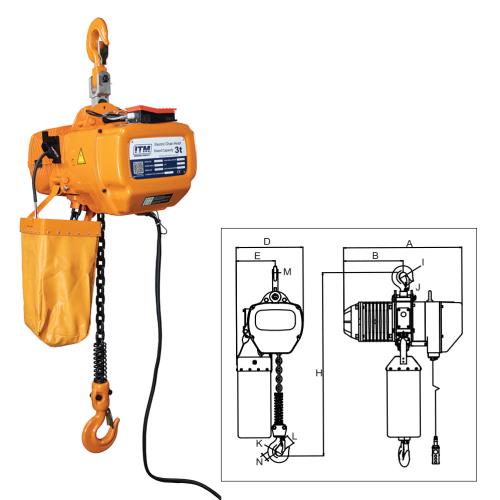

TM9003-03003 | ITM Electric Hoist, 415V, 3 Ton, 3 Meter Lift
Features
• Japanese technology with dual braking system to ensure safe and reliable operation
• Dual Speed
• Compact and light weight design
• Weight overload limiter for safety
• Dual-gear drive system providing smooth and quiet operation
• Three phase, 415V motor
• Upper and lower limit switches to prevent chain runout
• Chain length can be altered by ITM to your required length
• Tested & certified to AS 1418.2
• Test certificate & user manual supplied
• Replacement Chain 7.1mm TM9810-01607-1
• Replacement Chain 11.2mm TM9810-04011-2
Specifications
• Rated Capacity: 3 Tonne
• Standard Lift: 3m
• Running Test Load: 37.5kN
• Motor: 3000W 415V 3P
• No. of Chain Drops: 1
• Chain Type: Grade 80 11.2mm
• Lift Speed: 5.4 & 1.8m/min
• Net Weight: 122kg
• Extra Weight Per Metre Of Extra Lift: 2.8kg

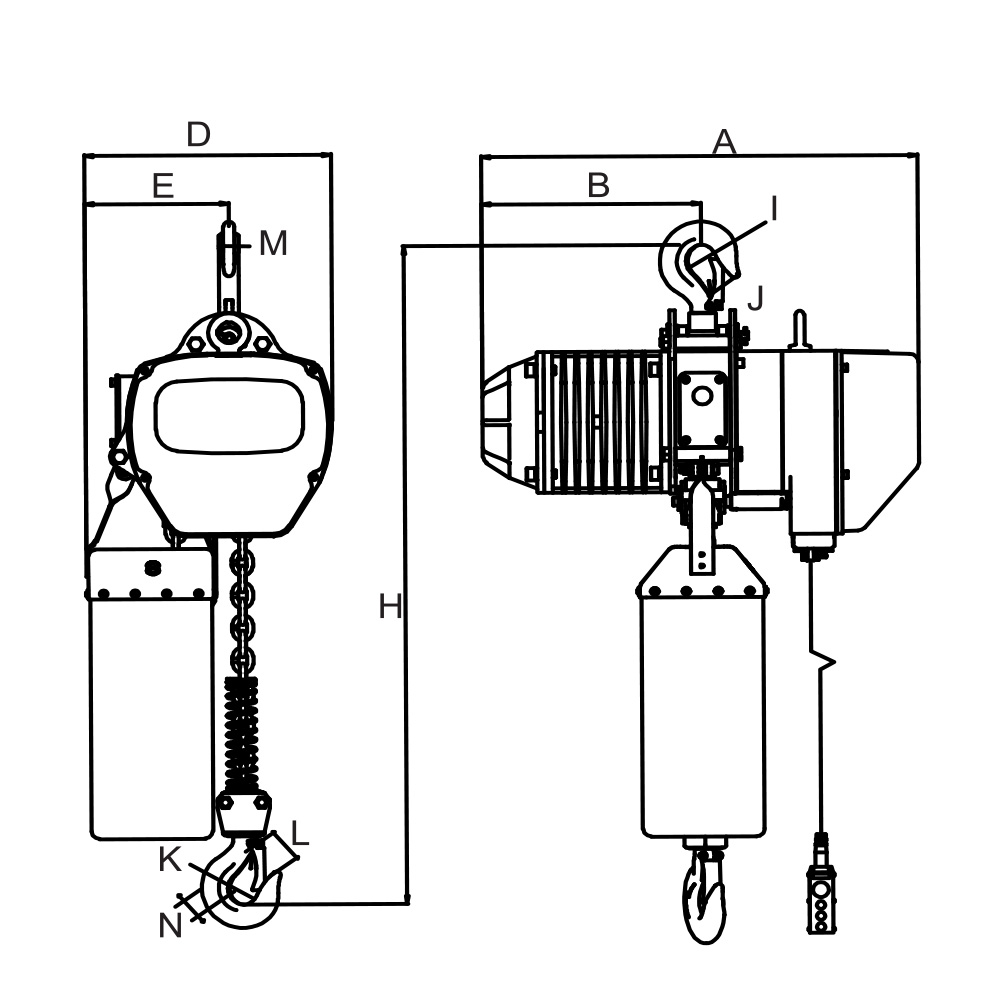

Dimensions (mm)
• A: 670
• B: 313
• D: 430
• E: 265
• H: 845
• I: 58
• J: 47
• K: 58
• L: 47
• M: 36
• N: 36
