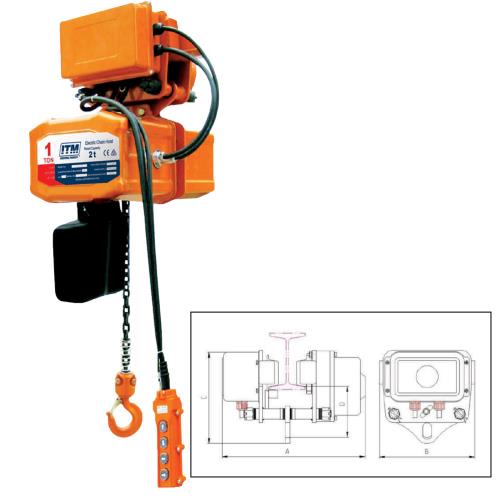

ITM Electric Hoist - 240V - 2 Ton-3 Meter Lift

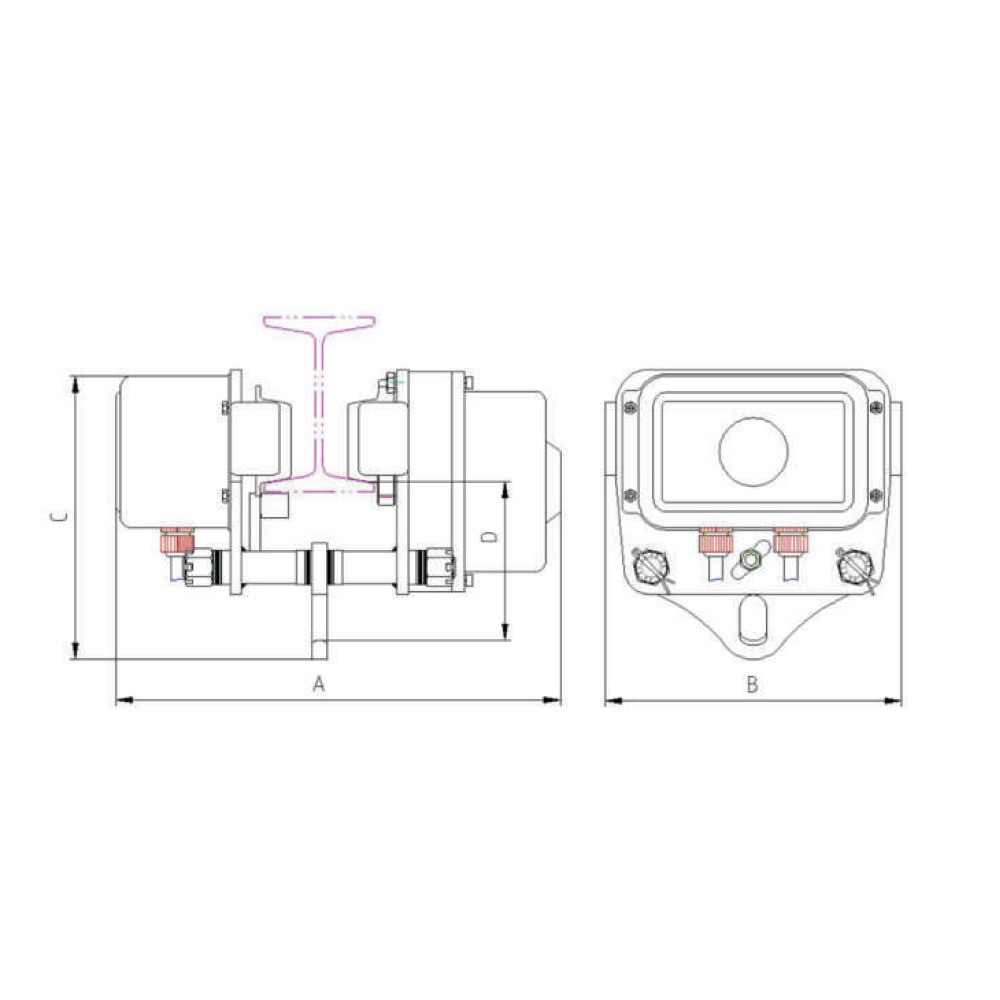

TM9005-02003 | ITM 240V Electric Hoist w/ Electric Trolley, 2 Ton, 3 Meter Lift Features • Japanese technology with dual braking system to ensure safe and reliable operation • Compact and light weight design • Weight overload limiter for safety • Thermal overload motor protection • Single phase, 240V motor • Upper and lower limit switches to prevent chain runout • Chain length can be altered by ITM to your required length • Tested & certified to AS 1418.2 • Test certificate & user manual supplied Specifications • Rated Capacity: 2.0 Tonne • Standard Lift: 3m • Hoist Motor: 1200w ,240v 1P • Trolley Motor: 300w, 240v 1P • No.Of Chain Drops: 2 • Chain Type: Grade: 80 7.1mm • Lift Speed: 3m/min • Trolley Speed: 20m/min • Size of I-beam: 74-124mm • Min. Radius Of Curve: 1.1m • Net Weight: 107kg • Dimensions (mm) (FRONT) • A: 245 • B: 245 • C: 124 • D: 176 • E: 350 • F: 610 • H: 630 • Dimensions (mm) (TOP) • A: 296 • B: 270 • C: 264 • D: 180
