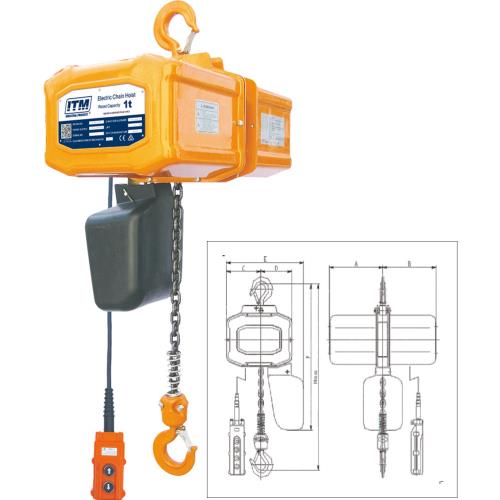

ITM 240V Electric Hoist-500kg-3 Meter Lift

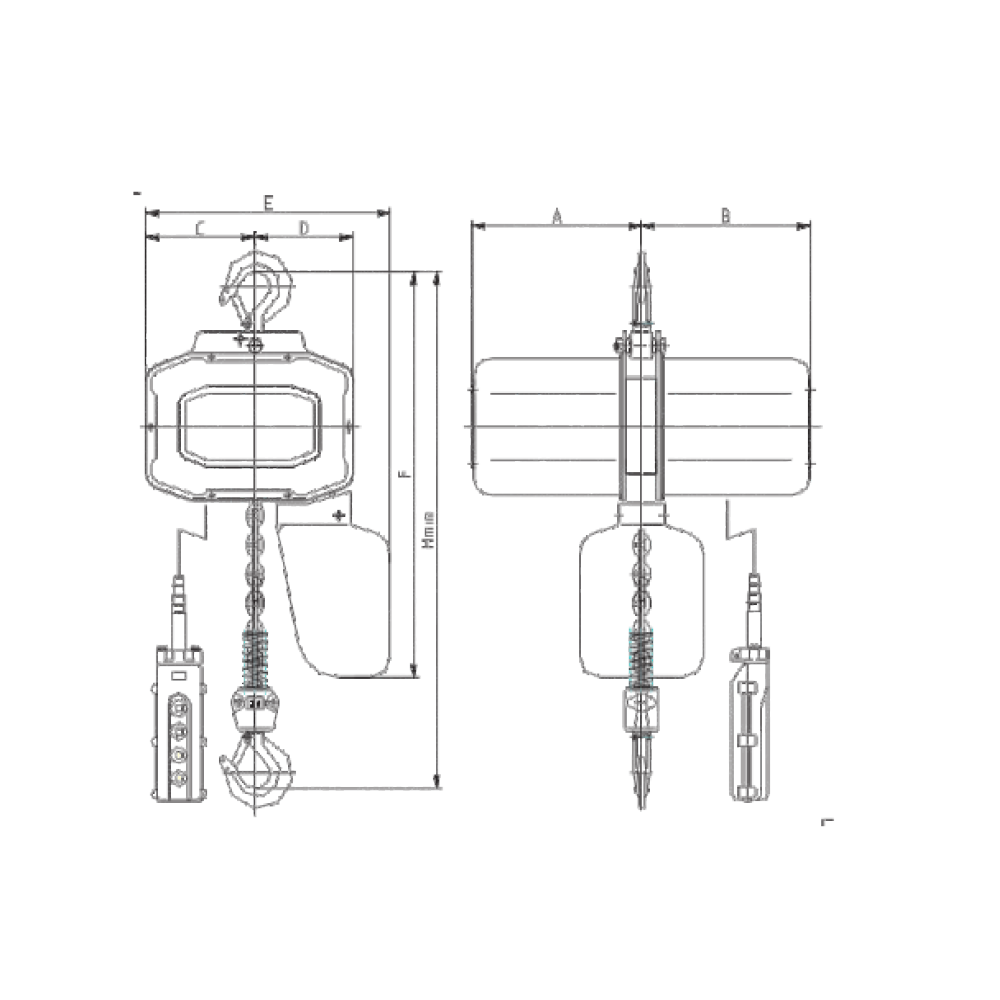

TM9001-00503 | ITM 240V Electric Hoist, 500kg, 3 Meter Lift Features • Japanese technology with dual braking system to ensure safe and reliable operation • Compact and light weight design • Weight overload limiter for safety • Thermal overload motor protection • Single phase, 240V motor • Upper and lower limit switches to prevent chain runout • Chain length can be altered by ITM to your required length • Tested & certified to AS 1418.2 • Test certificate & user manual supplied • Replacement Chain 7.1mm TM9810-01607-1 Specifications • Rated Capacity: 0.5 Tonne • Standard Lift: 3m • Running Test Load: 6.25kN • Motor: 800w 240v 1P • No. of Chain Drops: 1 • Chain Type: Grade 80 7.1mm • Lift Speed: 7m/min • Net Weight: 55kg • Extra Weight Per Metre Of Extra Lift: 1.1kg Dimensions (mm) • A: 245 • B: 245 • C: 158 • D: 142 • E: 350 • F: 600 • H: 500
