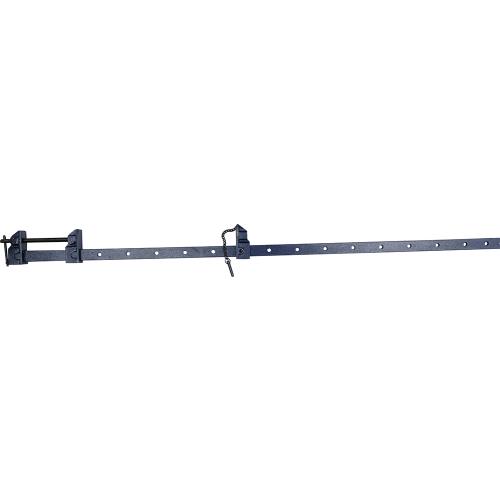

Groz Sash Clamp, Rectangular Section,1200mm Long 1050mm Cap.

GZ39114 | Groz Sash Clamp, Rectangular Section,1200mm Long 1050mm Cap. • Bar cramps are especially useful for clamping large section workpieces during fabrication, gluing in joinery, carpentry and boat building. • The bars are made from drawn steel with a section of 32mm x 6mm. Malleable iron head and slides provide rigidity and strength even under heavy tension. Both head and slide have a flat bottom allowing the bar to stand upright without support. • The head is fitted square to the bar with 1.5° to 2° taper for true parallel clamping action. • Main screw and handle are made from high-grade steel and have a blackened finish for increased resistance to corrosion. • The screw has rolled Acme threads that impart extra strength and are wear resistant. Specification • Bar Length: 1200mm • Clamp Capacity: 1050mm • Throat Depth: 50mm (2in) • Width of Clamp Face: 30mm (1-3/16”)
